- Full-motion CCTV video at distances up to 330m when used with any passive transceiver
- Up to 1500m with any active UTP video receiver
- Waterproof CCTV Camera video Balun Transceiver
- Video transmission via UTP CAT5 cable

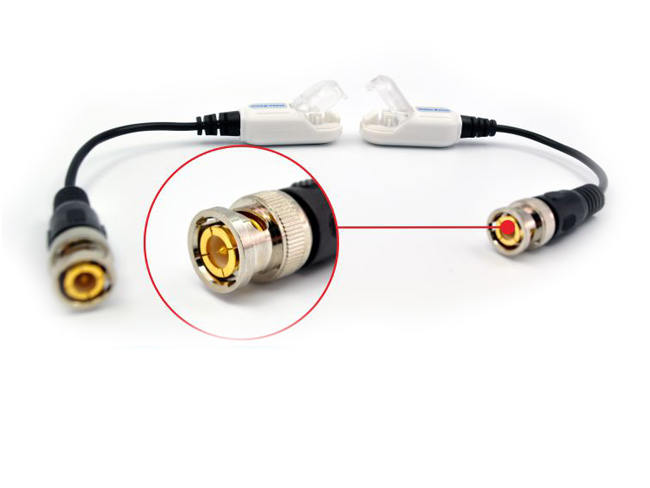

- Male BNC allows connection directly to the camera or DVR
- NTSC, PAL and SECAM video formats
- No power required
- Crosstalk and noise immunity: 60db

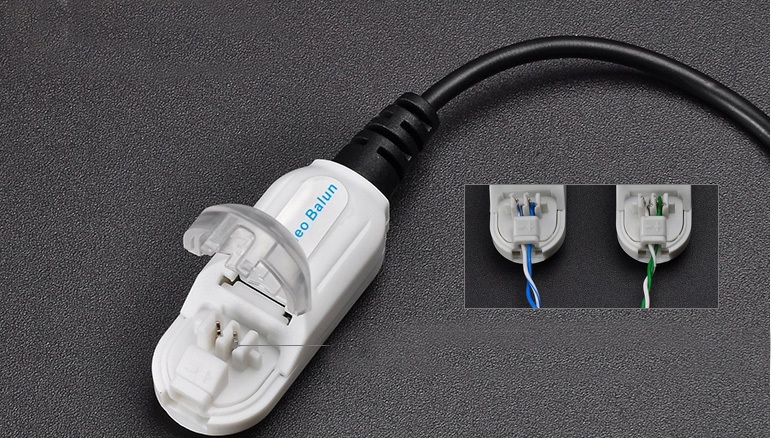

- Easy installation, tool-less,no need to strip the wires
- Compact size and easy installation
Single Channel Passive Video Balun Transceiver Cctv Camera Dvr Utp Cat5
over 100 stocks!

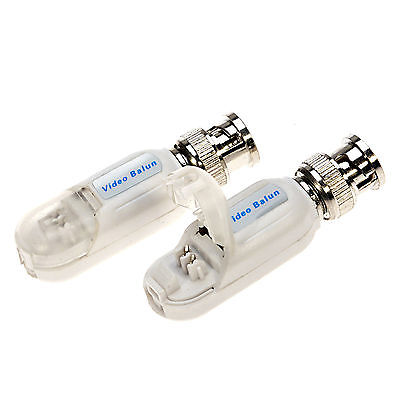

Single Channel Passive Video Balun
Durable, Top quality , Good Product Design, DVR UTP CAT5 1 Channel Passive BNC
Waterproof CCTV Camera video Balun Transceiver!
No power required!
Easy installation, tool-less, no need to strip the wires!
Up to 1500m with any active UTP video receiver!
This is a high quality video Balun transceiver with exceptional interference rejection and transient protection.
- Transmission Distance:
- Attenuation: 0.5dB typ
- Frequency response: DC to 8MHZ
- CMRR: 60dB
- Impedance: BNC: 75Ω
- Terminal: 100Ω
- Working Temperature : -10℃ to 70℃
- Storage Temperature : -30℃ to 70℃
- Humidity: 0 to 95%
- Dimension: Approx. 56*17*15mm / 2.2*0.7*0.6inch
- Material : ABS Plastic Shell
- 1 Pair of Video Balun Transceivers
